Name: MSI MAG Z690 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs
Brand: MSI
SKU: MBD3185
Price: 206.58 GBP
Availability: InStock
Rating: 5.0 (1 reviews)

MSI MAG Z690 TOMAHAWK WIFI ATX Motherboard for Intel LGA1700 CPUs

Compare

Was £310.00

SAVE £103

Now only

£206.58 inc VAT

Available for Free Priority Delivery from Tomorrow

10+ In Stock Now

Order within

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

Socket 1700
Intel Z690 Chipset
6 x SATA & 8 x USB Ports
DDR5 (max 128GB, 4 slots)
HDMI and Display Port
ATX Form Factor

CCL Code: MBD3185

Overview

MAG Z690 TOMAHAWK WIFI

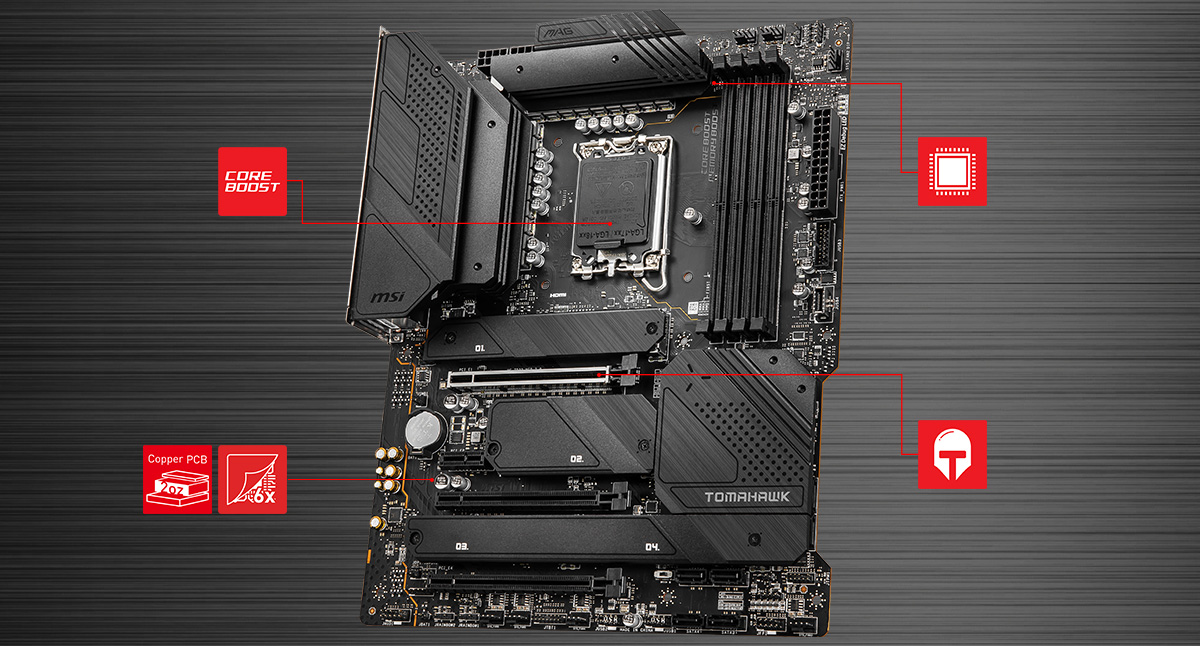

Exclusive feature

Core Boost Technology

With premium layout design, that is ready for unleashing the maximum performance.

6 layer PCB with 2oz Thickened Copper

6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

16 +1 +1 Duet Rail Power System

An aggressive digital VRM power design with digital PWM IC and 16 Duet Rail Power System with 70A Smart Power Stage, make sure your system run smoothly under the most extreme conditions.

PCIe Steel Armor

Protecting VGA cards against bending and EMI for better performance, stability and strength.

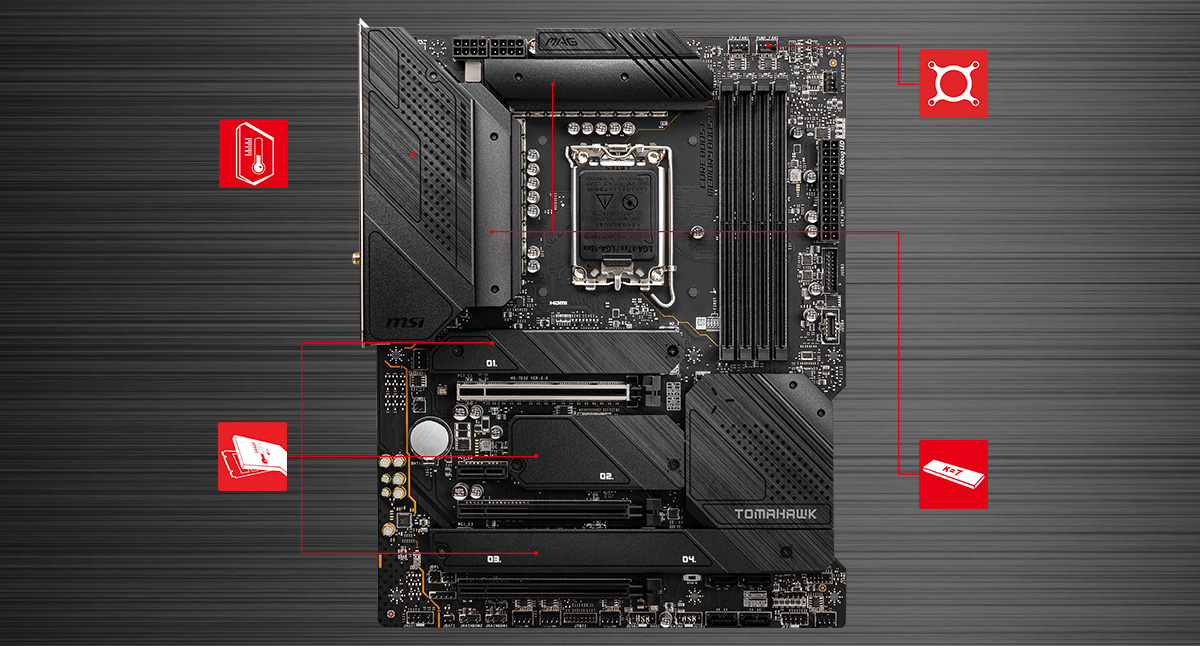

MAG Z690 TOMAHAWK WIFI

premium thermal solution

Extended Heatsink

MSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

M.2 Shield Frozr

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Pump Fan Support

Control watercooling pump speeds for best flow and noise control.

Heatsinks with 7W/mK Thermal Pad

7W/mK thermal pad provides better heat transfer to the heatsink

MAG Z690 TOMAHAWK WIFI

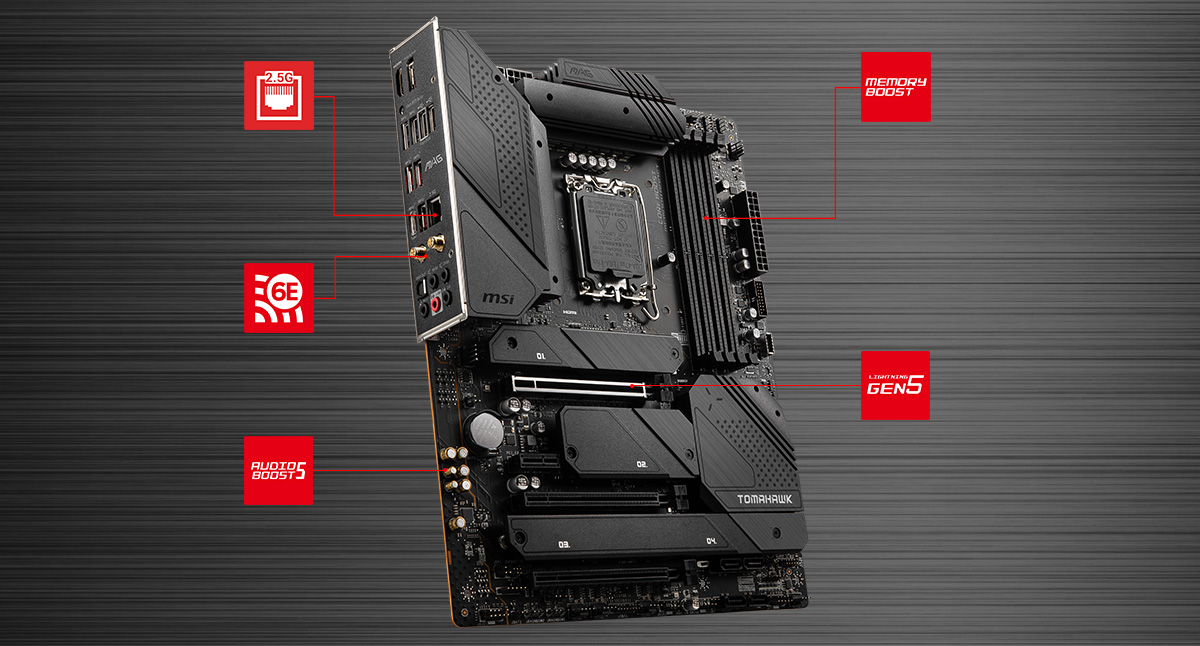

HIGH-SPEED TRANSMISSION

2.5G Network Solution

Featuring premium 2.5G LAN with LAN manager delivers better network experience.

Intel Wi-Fi 6E

The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

Audio Boost 5

ALC4080 Codec with top quality caps for the most immersive gaming experience.

Memory Boost

The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Lightning Gen 5 Solution

The latest Gen 5 PCI-E slots with up to 128GB/s bandwidth for maximum transfer speed.

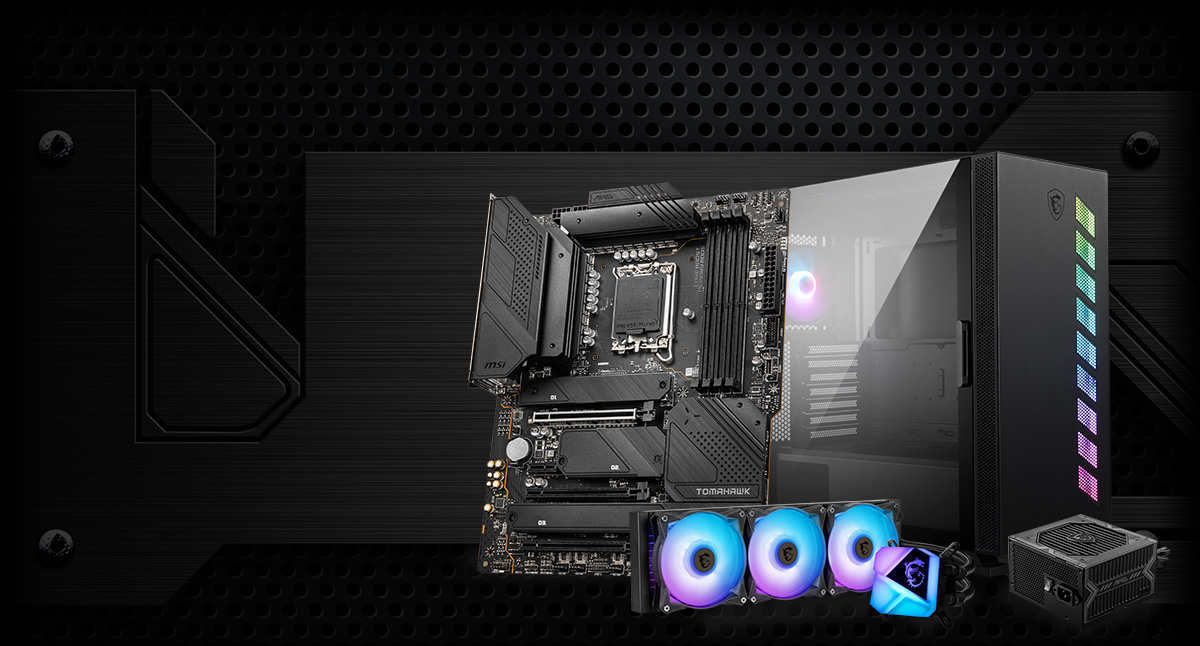

MSI MAG Z690 TOMAHAWK WIFI & MAG VAMPIRIC 300R & MAG CORELIQUID C360 & MAG A650BN

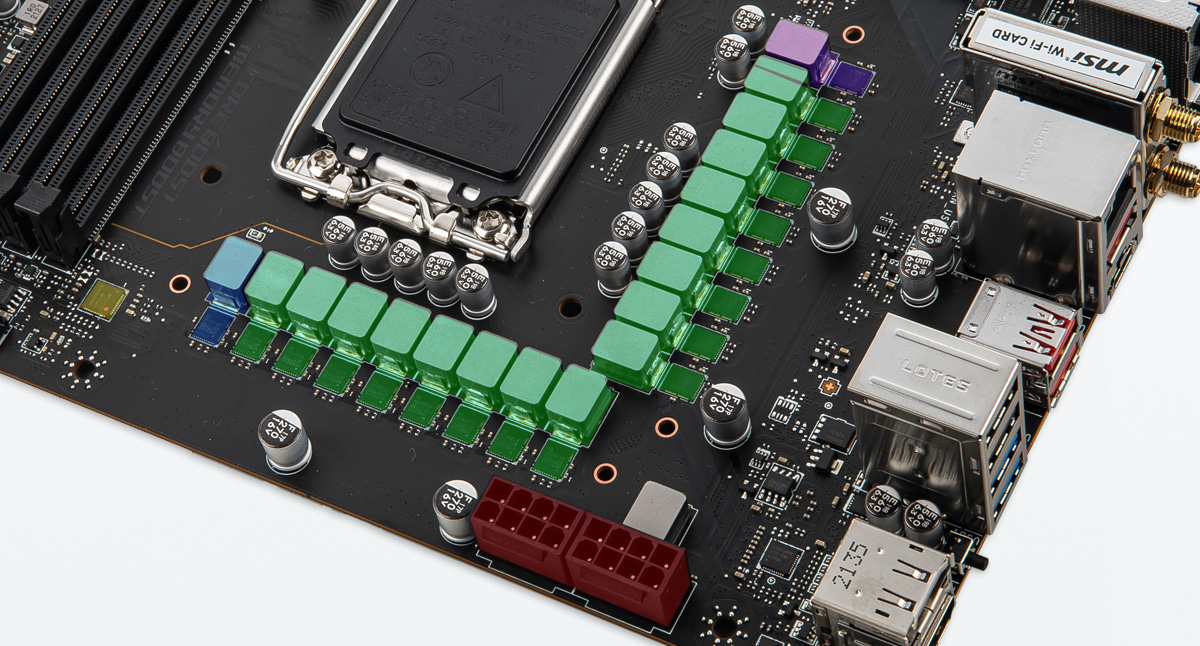

16 + 1 + 1 DUET RAIL SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 16 Duet Rail Power System(DRPS). Combining 2x 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy daily work.

2x 8 Pin CPU Power connectors
16 Duet Rail CPU Power System Smart Power Stage / 70A
1 phase GT Power
1 phase AUX Power
Digital PWM IC

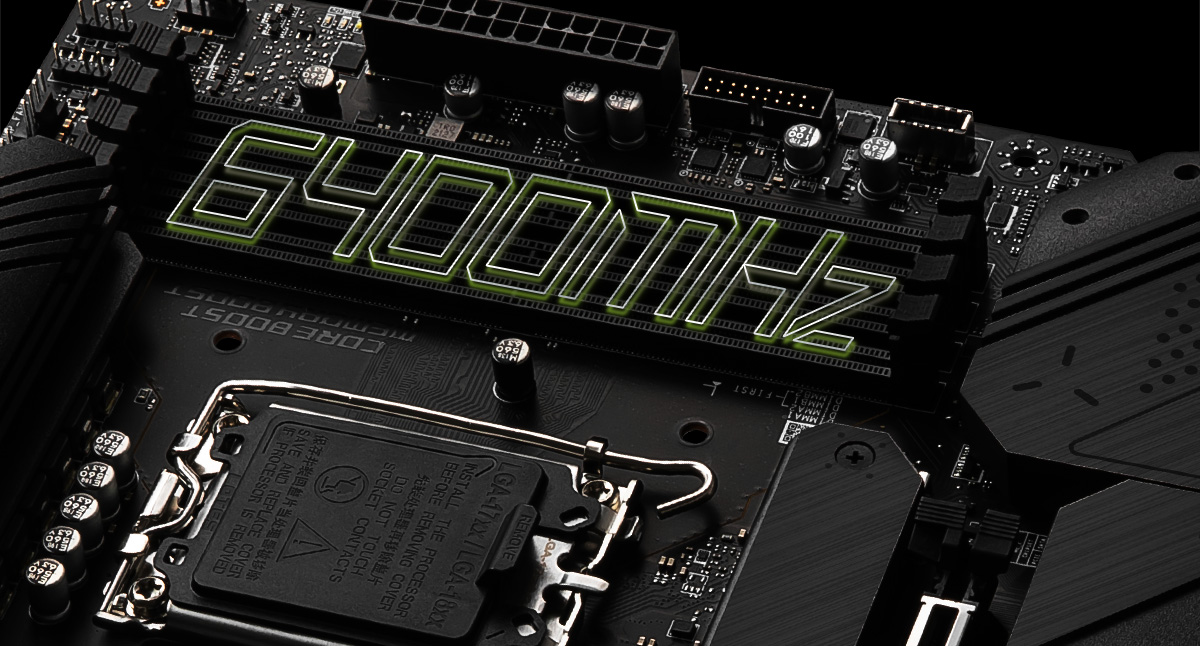

LATEST DDR5 MEMORY

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG Z690 TOMAHAWK WIFI is ready to deliver the world class memory performance.

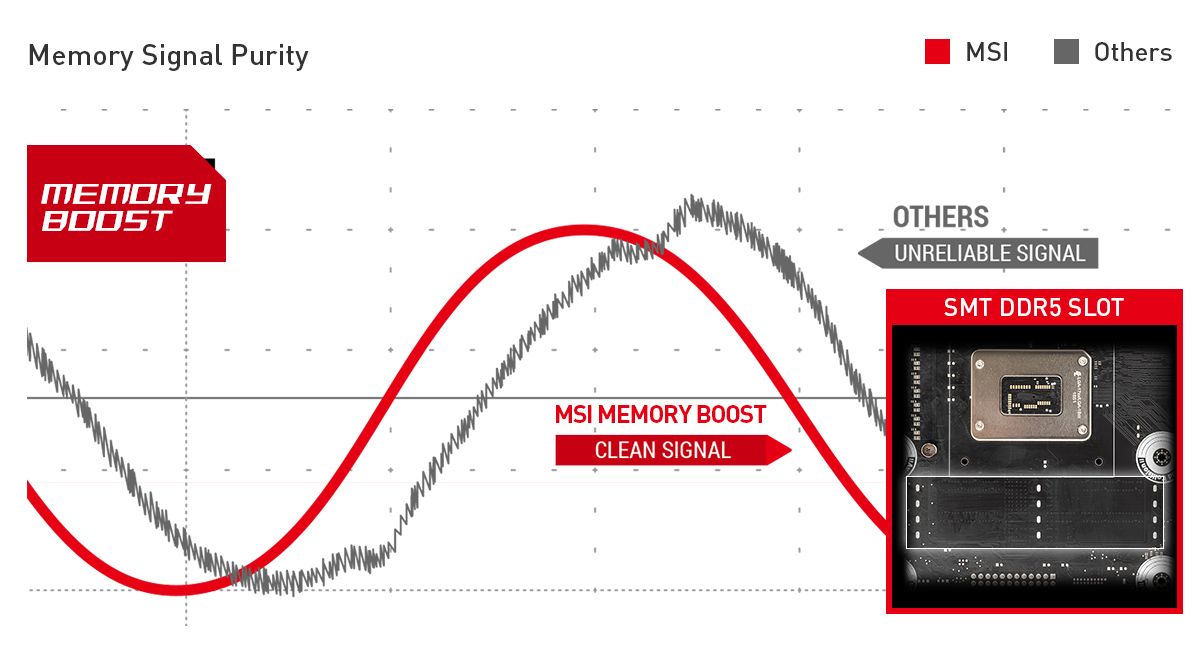

UNMATCHED MEMORY PERFORMANCE

MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

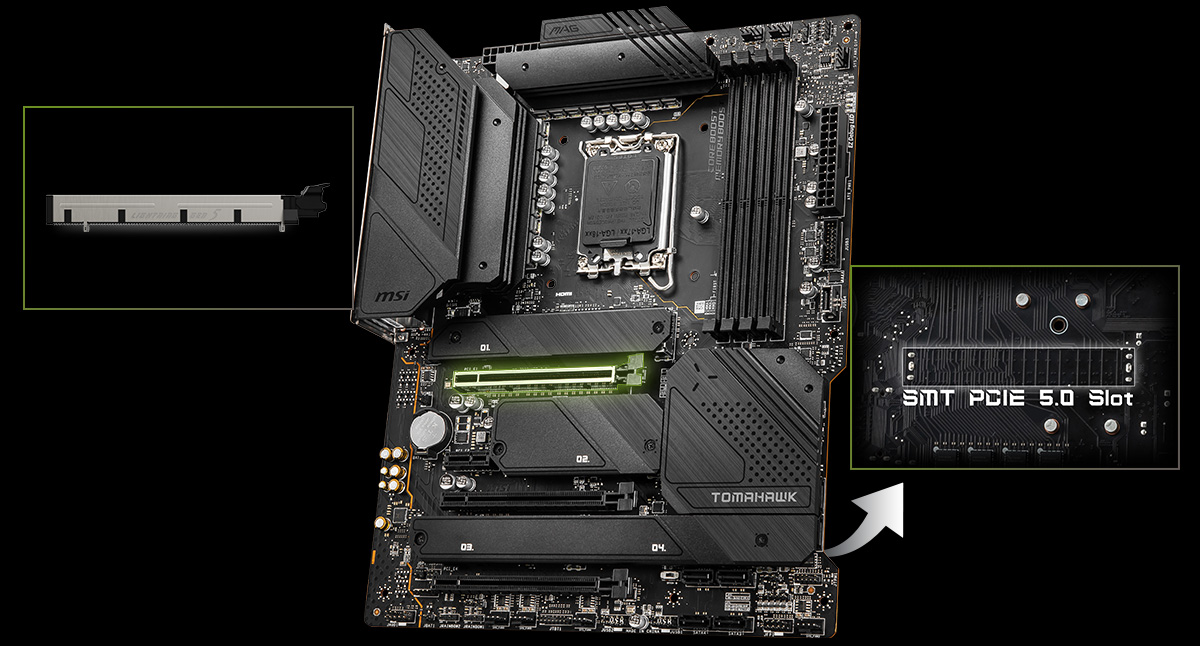

LIGHTNING GEN 5 PCI-E

MSI Lightning Gen 5 PCI-E represents the bandwidth of a x16 interface to 128GB/s, which is double of the speed of the previous generation. The advanced SMT(Surface Mount Technology) PCI-E slot diminishes the interference and electrical noise, fully supporting higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.

M.2 SHIELD FROZR

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

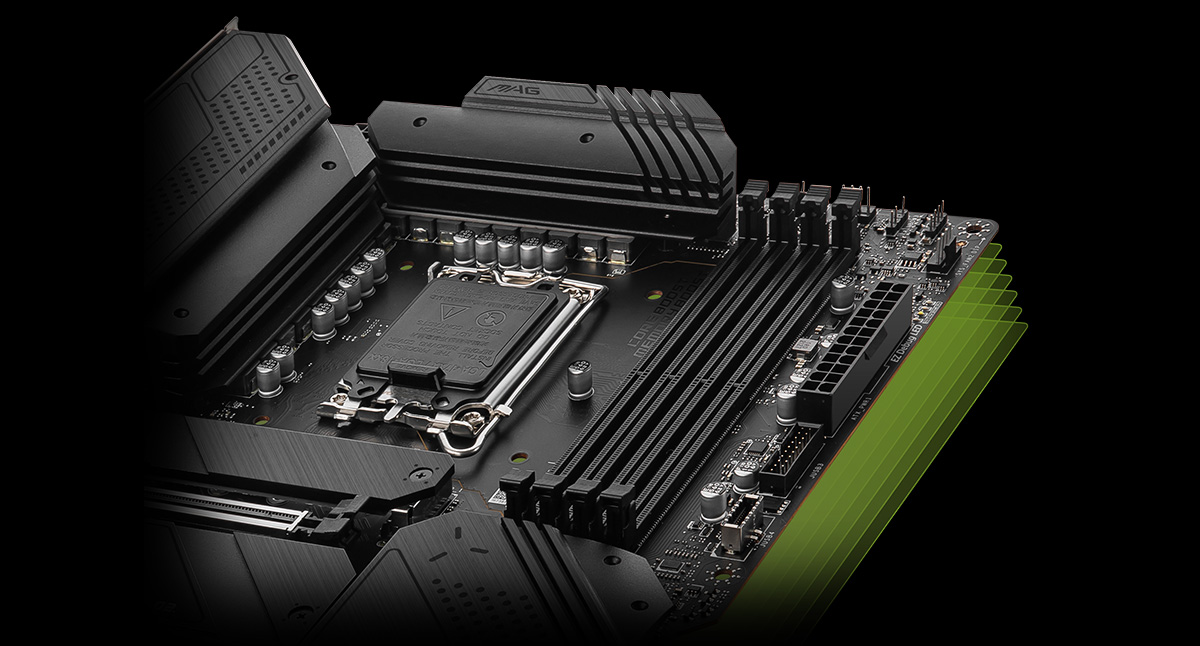

PCB Design

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

6 PCB layers
IT-170 Server-grade PCB material
2oz Thickened Copper

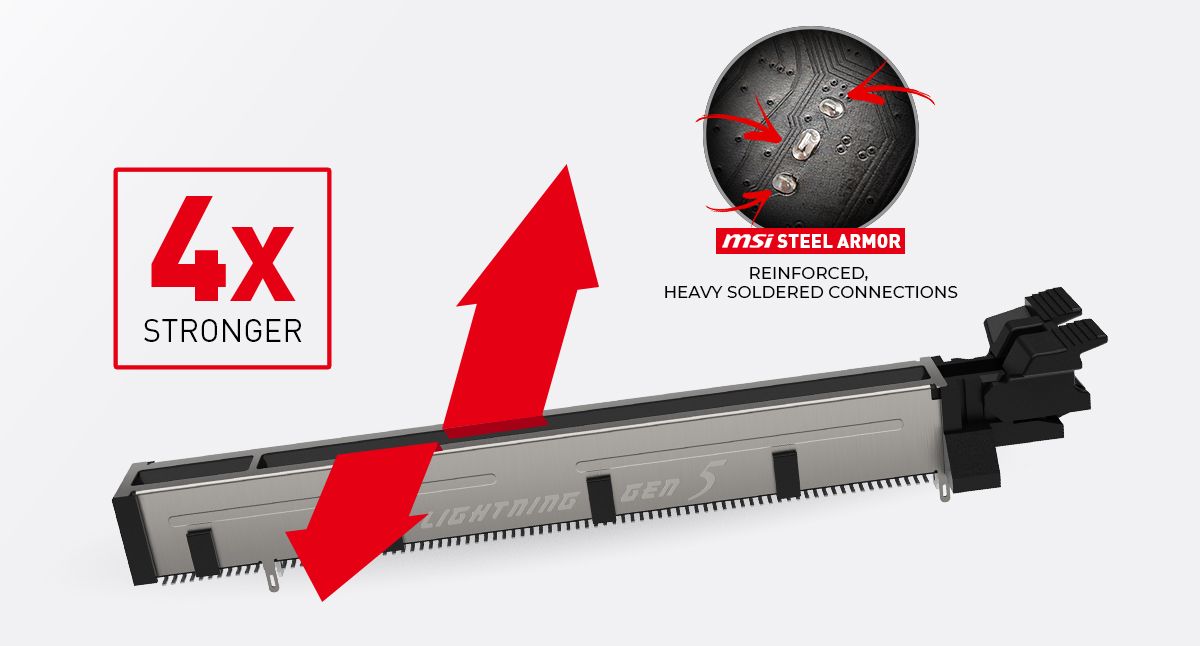

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

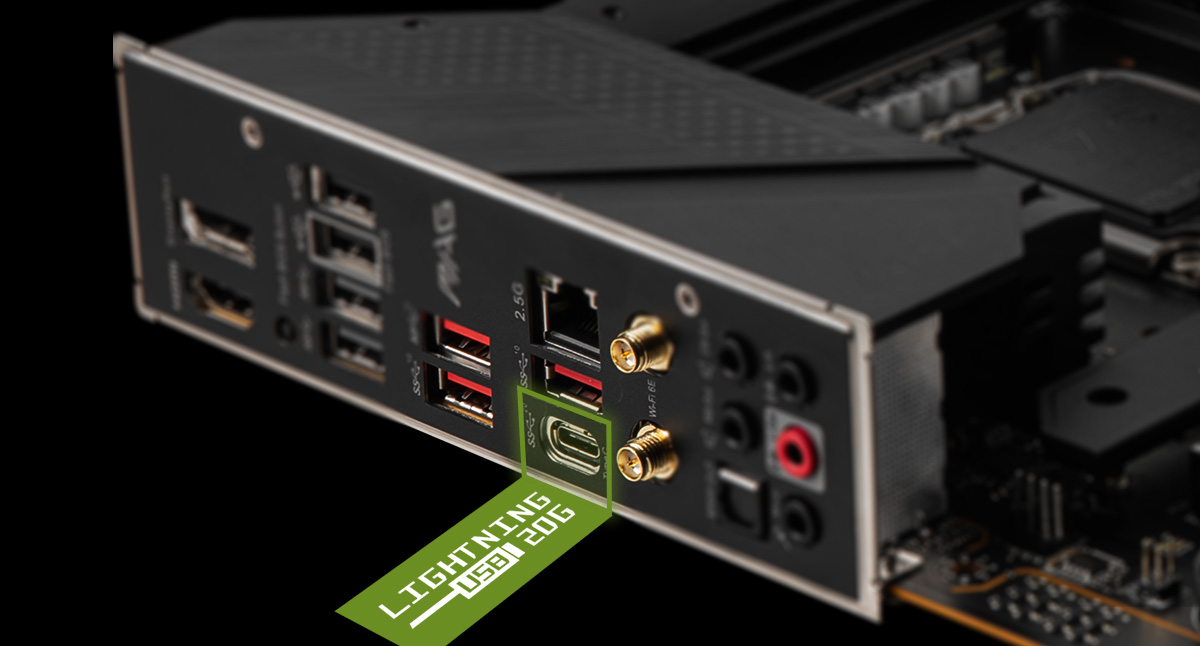

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G

Using USB 3.2 devices has never been faster! Featuring the USB 3.2 Gen2x2 controller, MSI motherboards offer never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The Lightning USB 20G connectors are covered with gold to ensure a better signal and performance.

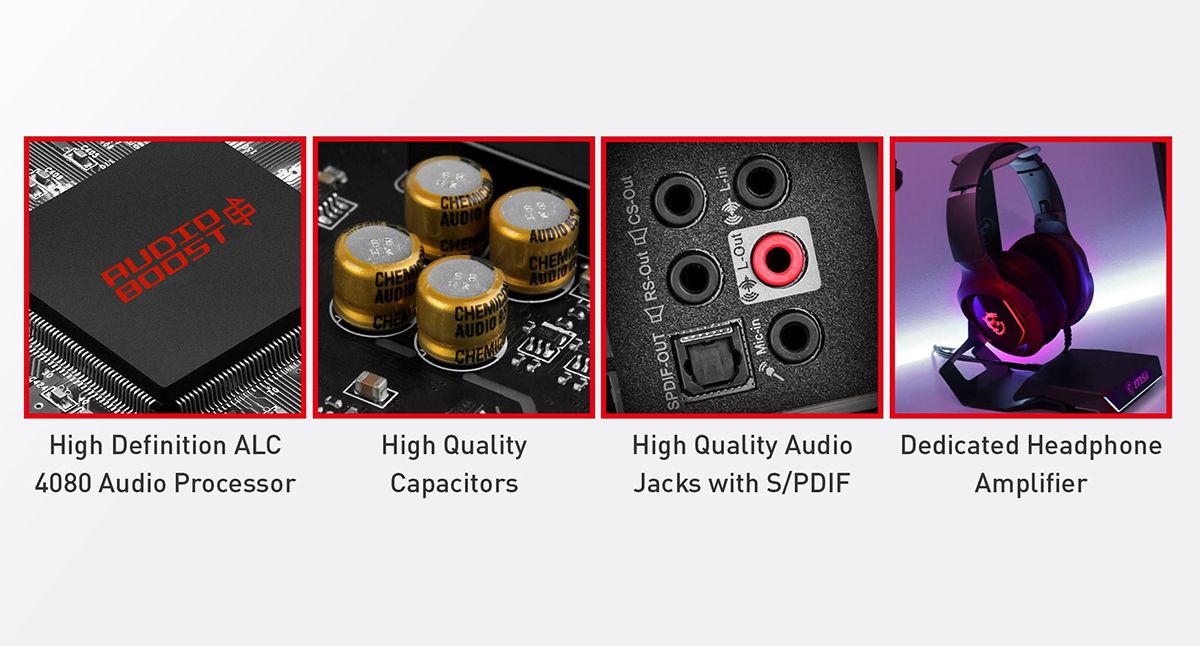

AMPLIFY YOUR EXPERIENCE WITH AUDIO BOOST 5

Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.

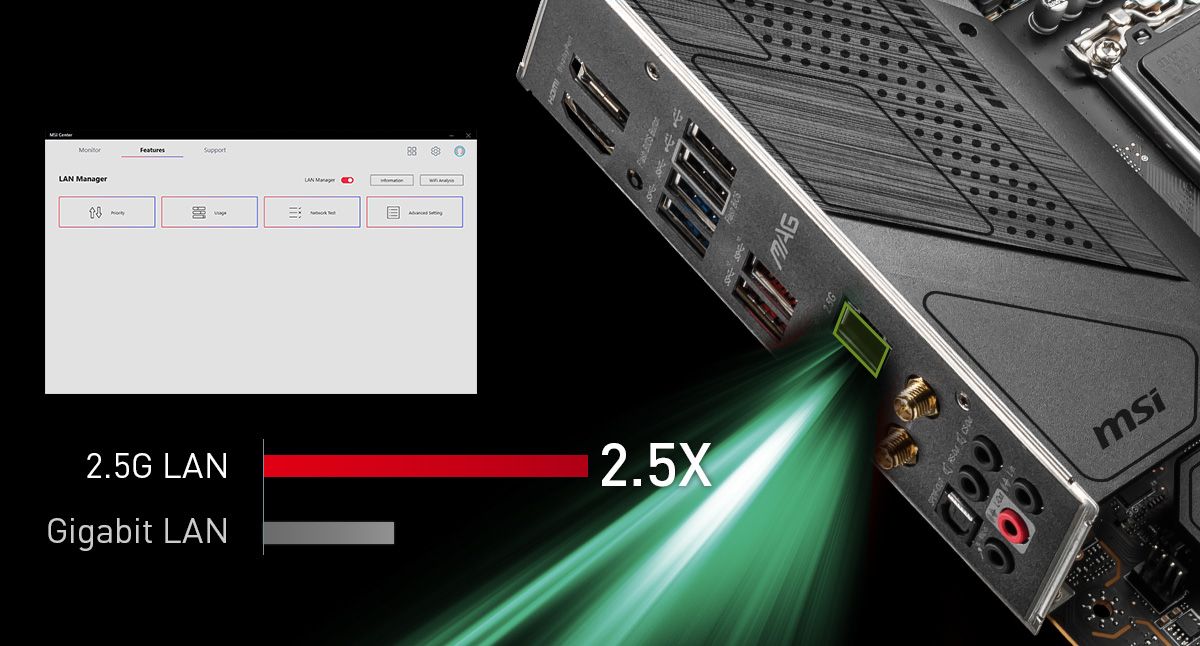

MAXIMIUM DATA TRANSFER WITH 2.5G LAN

MAG Z690 TOMAHAWK WIFI features high-bandwidth and low-latency Ethernet networks for demanding gamers and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

WI-FI 6E & BLUETOOTH

Use your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.

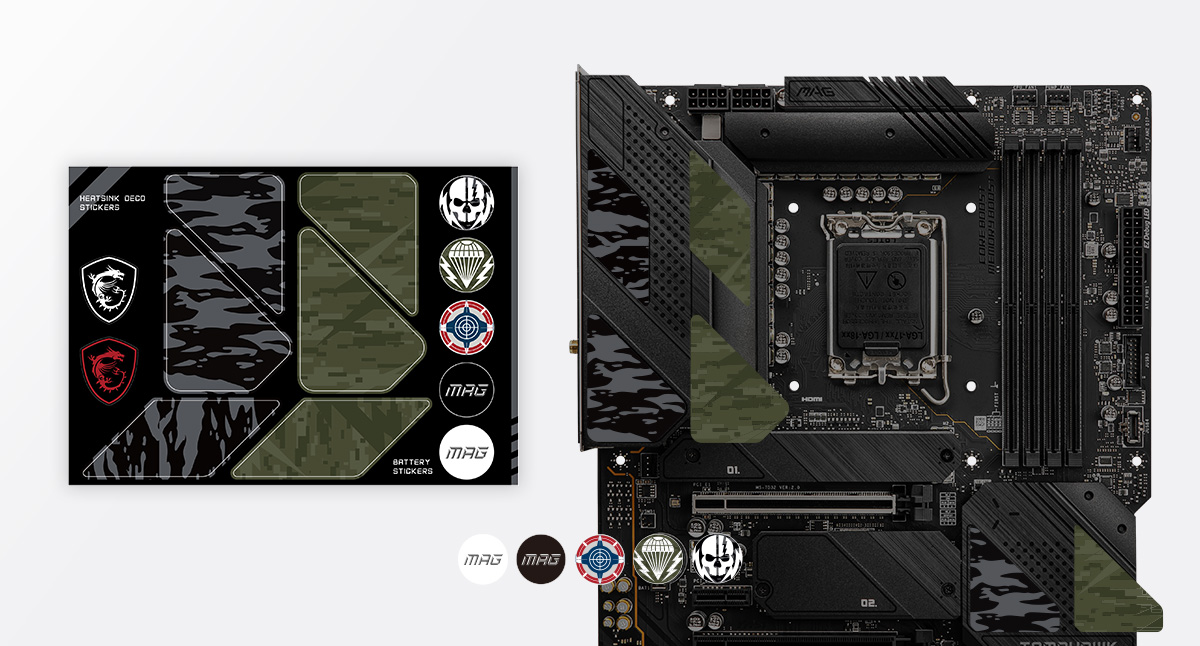

CUSTOMIZATION STICKERS

Thanks to the stickers within the package, you can easily personalize your motherboard and truly make it yours.

Main Features

Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR5 Memory, up to 6400(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire

Promotions

Get 5% off components when you buy 5 or more*

For a limited time, buy at least 5 different components from different qualifying categories and get 5% off those items at checkout.

*Terms & Conditions apply.

Promotional Period: From 2023-09-25 till 2023-10-09, while stocks last.

Terms and conditions apply. Click here to view details.

Terms and Conditions

It can't be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to five or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. If will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the five or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 17th of August, 2023 till 31stof August, 2023.

Specifications

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	12th Gen Intel Core Processors
64-bit Support	Yes
Socket	LGA1700

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 3 x USB 3.1 2 x USB 3.0 2 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x Antenna

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Water Pump fan header 6 x System fan headers
Thunderbolt Port(s)	1 x Thunderbolt header (supports RTD3)
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3 or SATA) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 or SATA) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header 1 x Tuning Controller header

Memory

Memory Bus Speed	Up to 6400+ MHz (OC)
Memory Type	DDR5
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Chipset Manufacturer	Intel
Northbridge	Z690
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
2 x PCI Express 3.0 x16 slots (@ x4, x1)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC4080

Warranty

3 Years

Network

Integrated Network	Intel I225V
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 6E)
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.2

System Requirements

Operating Systems Supported

Microsoft Windows 11 / 10 64-bit

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes
SLi/Crossfire Features	Supports AMD CrossFire Technology

Physical

Form Factor	ATX Motherboard
In The Box	MSI MAG Z690 TOMAHAWK WIFI Motherboard User Manual Quick Installation Guide Wi-Fi Antenna 2 x SATA Cables EZ M.2 Clip USB Drive MSI Case Badge MAG Stickers Reward Program / Shout Out Flyer MSI Product Catalog Product Registration Card
Width	305 mm
Length	244 mm

Key Features

Motherboard Power Connectors	8 + 8-Pin
Motherboard Chipset	Intel Z690
Thunderbolt	No
Motherboard Model	MSI MAG Z690 TOMAHAWK WIFI
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
Memory Speed	6400 MHz
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	3200 MHz
Max Memory Speed Supported (overclocked)	5200 MHz
CPU Power Pins (female)	16
Total M.2 Slots	4
Maximum NVMe M.2 ports	4
Maximum SATA M.2 ports	2
SATA ports	6
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Firewire	No
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
mSATA Supported	No
U.2 Supported	No
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	8 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	ATi CrossFire
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX

Item Details

Manufacturer	MSI
Manufacturer Code	MAG Z690 TOMAHAWK WIFI
EAN	4719072896683
UPC	824142272640
Condition	New

Warranty

Warranty Information

Warranty

3 Years

Manufacturer Information

Manufacturer	MSI
Manufacturer Code	MAG Z690 TOMAHAWK WIFI

Q&A

Do you have you a question about the MSI MAG Z690 TOMAHAWK WIFI Motherboard, ATX, Intel Socket 1700, Z690 Chipset?

Reviews

5.0 / 5 1 review

Jon

5 months ago

Uncertain why i went with this model, it certainly does the job and im not doing anything silly with it. I guess my main reason was it wasn't gigabyte, and i've generally had good experiences with msi. Dunno about value most boards are pretty costly atm, however it had ddr5 support which i wanted so it's future proofed for a considerable time.
