Ssupd Meshlicious SFF Case - Black USB 3.0

Ssupd Meshlicious SFF Case - Black USB 3.0

CCL Code: CAS4302

Was £131.04

SAVE £10

Now only

£120.12 inc VAT

Ssupd Meshlicious SFF Case - Black USB 3.0

G99.OE759FMX.00

Was £131.04

SAVE £10

Now only

£120.12 inc VAT

Available for delivery from Monday 22nd April

Buying in bulk? Contact our business team.

Key Features:

  • PSU not included
  • 2 x 2.5" Drive(s) Max
  • 2 x 3.5" Drive(s) Max
  • Max MB Size: ITX
  • Front USB Type-C Port
CCL Code: CAS4302
Overview

Meshlicious is a combination of MESH and Delicious. There’s so much mesh that your mouth will water. Breathable, mesh panels lets you savor the airflow and minty temps.

This version comes with a 14.5cm PCIe 3.0 Riser Cable. For this cable to work on PCIe 4.0 components, the motherboard BIOS should be updated to the latest version with the PCIe configuration in BIOS set to Gen 3 or 3.0.

The package includes one PCIe riser cable and one HDMI 2.0 cable.

Well Ventilated for High End Hardware

Breathable, mesh panels enables higher airflow and better cooling.

Supports Radiators up to 280mm

Meshlicious is great for liquid cooling. It can support a wide range of radiators up to 280mm. Dimensions supported are up to 320mm length, 143mm width and 63mm thickness.

Large GPU Support - up to Four Slots

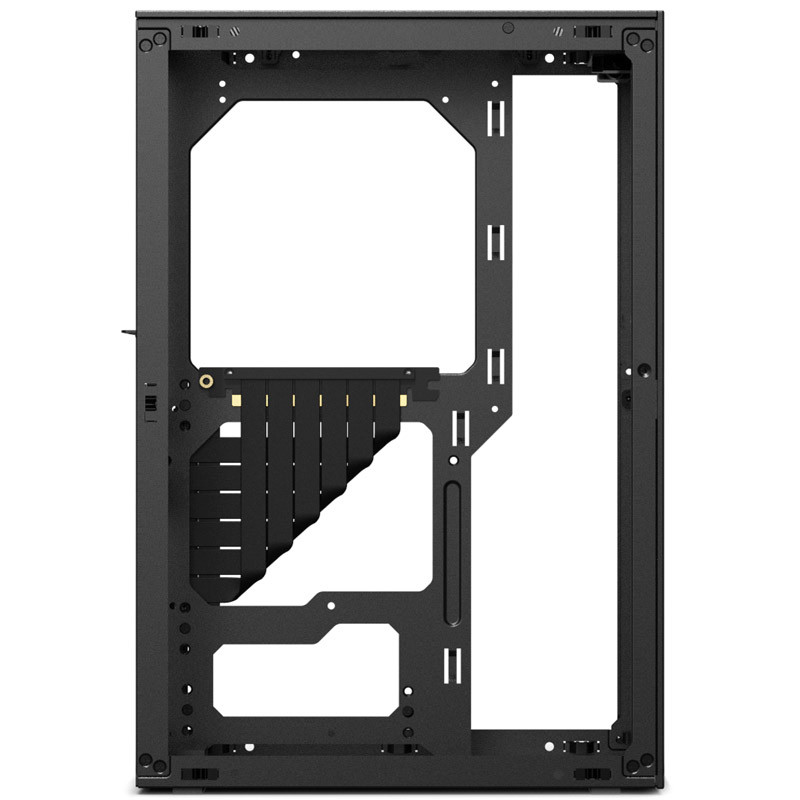

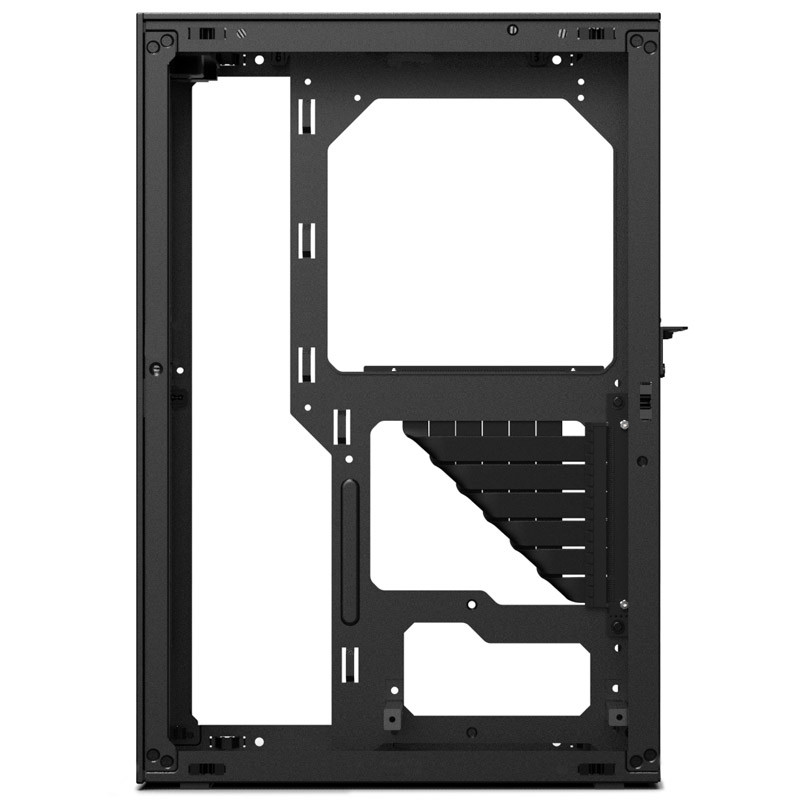

The motherboard tray also functions as a divider so you can split the CPU space and GPU sapce, making it possible to support GPUs up to four slots thick.

The GPU bracket is adjustable vertically, allowing for adjustments to the space available for the cables that are connected to the GPU.

Keeping it Cool by Design

Meshlicious is a high airflow, Small Form Factor (SFF) enclosure designed to keep you high end components cool and performing at their best.

ATX and SFX Power Supply Support

Compatible with both ATX and SFX power supplies. Meshlicious makes transitioning from an ATX build easy. There's no need to buy a new power supply.

Storage Drive Suppot up to 2 x HDD and 3 x SSD

Despite the small size, Meshlicious can support up to two 3.5" harddrives or four 2.5" hard drives (dependent on GPU size).

Main Features

  • Fine mesh panels and well ventilated
  • 14.67 liters in size
  • Support for regular size hardware
  • High quality powder coated SGCC steel

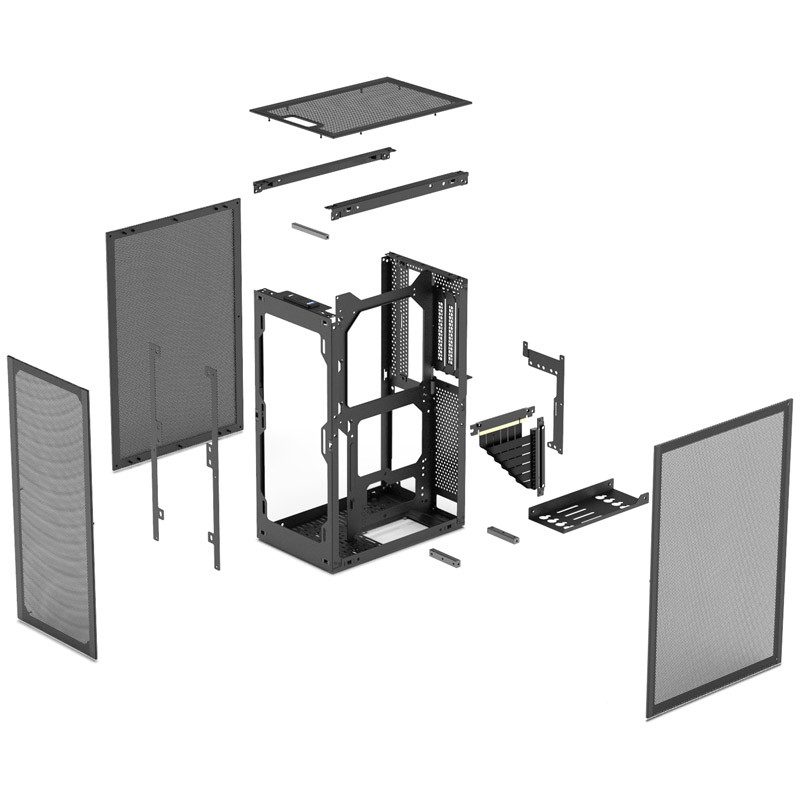

  • Tool-less external panels and easy to assemble
Videos

The 2021 ITX Case to Beat – SSUPD Meshlicious

Specifications

Storage

Internal Expansion Bays 2 x 2.5" SSD (with full length GPU & ATX PSU) / 3 x 2.5" SSD (with full length GPU & SFX PSU) / 7 x 2.5" SSD (with SFF GPU & SFX PSU)
Up to 2 x 3.5" HDD (with Small Form Factor GPU)

Expansion

Expansion Slots Full Length GPU : Up to 4 slot; Small Form Factor GPU : 3 slot

Interfaces/Ports

USB Ports 1 x USB 3.1 Type-C
1 x USB 3.0

Electrical

Power Supports 170mm ATX PSU (with front fan only) / up to 160mm ATX PSU (with upward tubing AIO) / 140mm ATX PSU (with downward tubing AIO)
Cooling System Front: Supports 2x 120 mm or 2x 140 mm fans
Front Radiator: Supports 120 / 140 / 240 / 280 mm (Up to 320mm length, 143 mm width, 63 mm thickness with fans, dependent on GPU position / type)
CPU Cooler support: 3 slots GPU mode: Up to 73mm Height / 4 slots GPU mode: 53mm Height
Power Supply ATX, SFX-L, SFX PSUs supported

Physical

Form Factor SFF Case
Case Colour Black
Material Steel
1mm Mesh Panels
LED Status Indicators Power
Motherboard Compatibility Mini-ITX
In The Box Case
Case Accessories
PCIe 3.0 Riser Card
HDMI Cable
Width 166.4 mm
Depth 245 mm
Height 360 mm
Weight 3.6 kg

Key Features

Firewire No
Max Motherboard Width 170 mm
Max Motherboard Height 170 mm
Main Colour Black
Case Type SFF
USB 3.0 Support Yes
Case Form Factor SFF
Power Supply Included No
80Plus Rated No
PSU Form Factor ATX
Display Model in Showroom No
Illuminated No
e-SATA No
L.E.D Fan No LED
Max 3.5" Drives 2
Max 2.5" Drives 2
ITX Yes
Cooler Height 73 mm
Built-in Card Reader No
USB Type-C Support Yes
Front HDMI No
Side Panel Type Mesh
GPU Length 336 mm
PSU Depth 170 mm
RGB LED Controller Included No
LED Strip(s) Included No
Maximum Motherboard Size Supported ITX

Warranty

Warranty 1 Year

Item Details

Manufacturer Ssupd
Manufacturer Code G99.OE759FMX.00
EAN 4718466010049
UPC 840353040922
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer Ssupd
Manufacturer Code G99.OE759FMX.00
Reviews
4.7 / 5 3 reviews

Robert

December 2021

A bargain! While it is small, it still had a lot of space inside due to its sandwich layout. Very good airflow, and the LEDs inside are rather easy to see even if having full mesh. Easy to build in. Definitely would recommend and buy again!

Peter

December 2021

The case its hard to fault. the riser cable was not listed or type PCI 3.0 or 4.0 at the time when it purchase. So i will have a PCI 4,0

Lee

August 2021

Make sure you purchase a 90 degree Displayport Cable. PCIE Riser is Gen 3 also, and not Gen 4.
