ASUS Radeon RX 6950 XT TUF OC 16GB Graphics Card

ASUS Radeon RX 6950 XT TUF OC 16GB Graphics Card

CCL Code: VGA6484

Discontinued

  • ASUS Radeon RX 6950 XT TUF OC 16GB Graphics Card
  • ASUS Radeon RX 6950 XT TUF OC 16GB Graphics Card
  • ASUS Radeon RX 6950 XT TUF OC 16GB Graphics Card

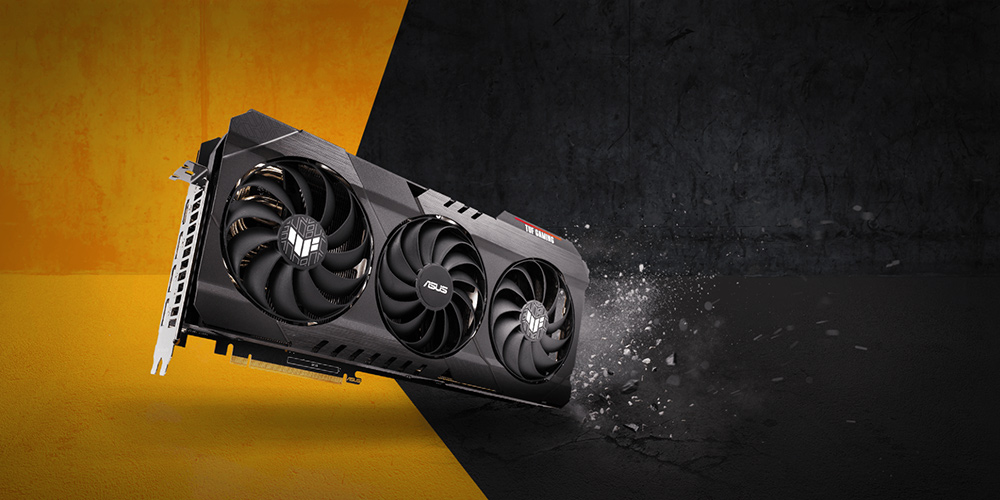

ASUS TUF Gaming Radeon™ RX 6950 XT is a truly tenacious performer

ASUS Radeon RX 6950 XT TUF OC 16GB Graphics Card

90YV0HY0-M0NM00

ASUS TUF Gaming Radeon™ RX 6950 XT is a truly tenacious performer

Key Features:

  • 16GB Graphics Memory
  • PCI Express 4.0 x16 Interface
  • Cooler Type - Dynamic Fan
  • Pre Overclocked Edition
  • Outputs - HDMI and Display Port
CCL Code: VGA6484

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

Built TUF

The TUF Gaming Radeon™ RX 6950 XT is a tenacious beast with a tough metal exterior, super-efficient cooling, and components that offer enhanced endurance. An all-metal shroud houses three powerful axial-tech fans with dual ball fan bearings and extra blades. Under the exoskeleton, a thick heatsink keeps thermals under tight control and TUF components, selected for maximum durability and performance, keep the card ahead of the pack. You asked for a mean machine... this one is ready for action.

  • Factory Mode: Up to 2324 MHz (Boost Clock)/up to 2116 MHz (Game Clock)
  • Axial-tech Fan Design has been enhanced with more fan blades and a new rotation scheme.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
  • An all-aluminum shroud, reinforced frame, and metal backplate enhance durability.
  • MaxContact heat spreader features a super flat surface for improved thermal transfer.
  • A vented backplate prevents hot air from recirculating through the cooling array.
  • GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

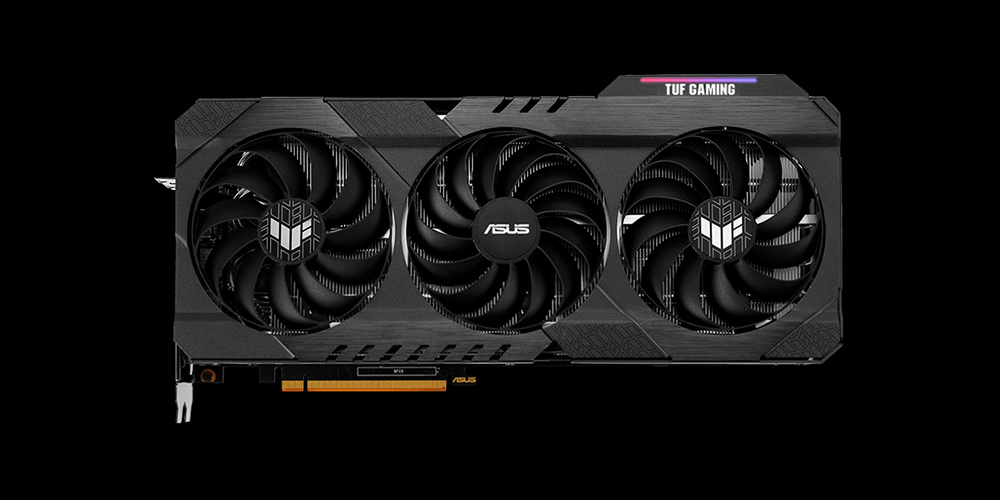

Bigger, Better Cooling

This generation, our Axial-tech fan design has matured with an increased blade count on all three fans: 13 on the center fan and 11 on the auxiliary fans. The barrier rings on the side fans have been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan’s extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader. The fan design growth is specifically optimized for a massive new heatsink that features more fins and surface area than previous iterations.

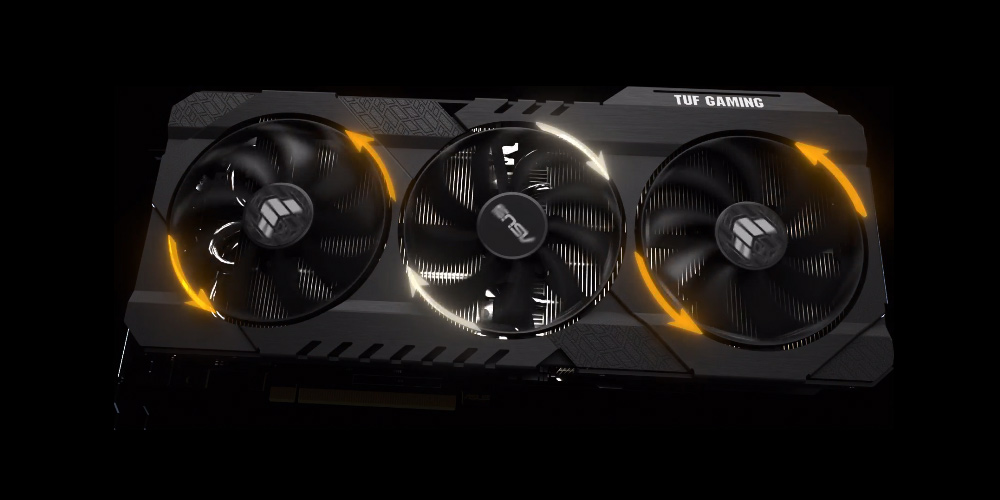

Quiet Cunning

To bolster the specialized roles of the center and auxiliary fans, the rotational direction of the center fan is reversed. This reduces air turbulence inside the cooling array for another boost to overall thermal performance. Fans will also only start spinning when the GPU temperature hits 60 Celsius and shut off when temps drop below 55 Celsius, helping to reduce noise when the system is idling or under light load.

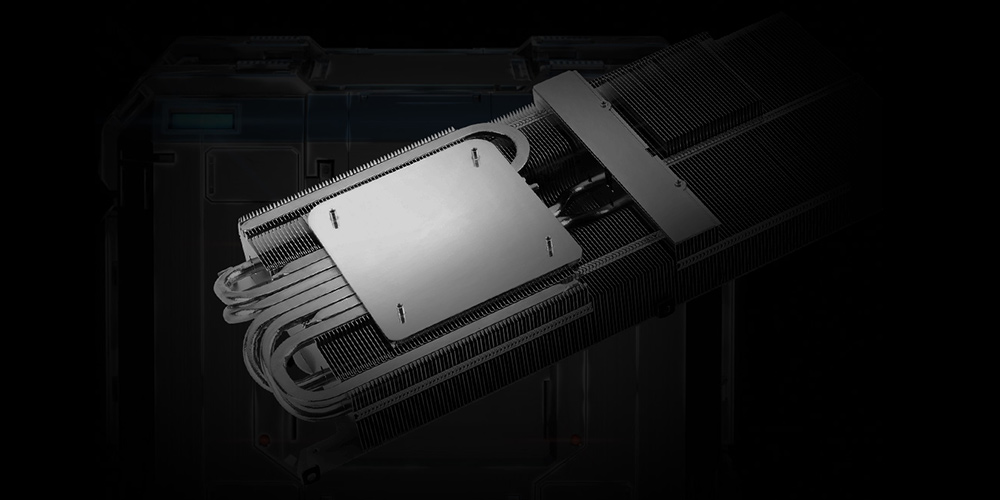

MaxContact

To get heat up off the die and into the heatsink array, we’ve engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.

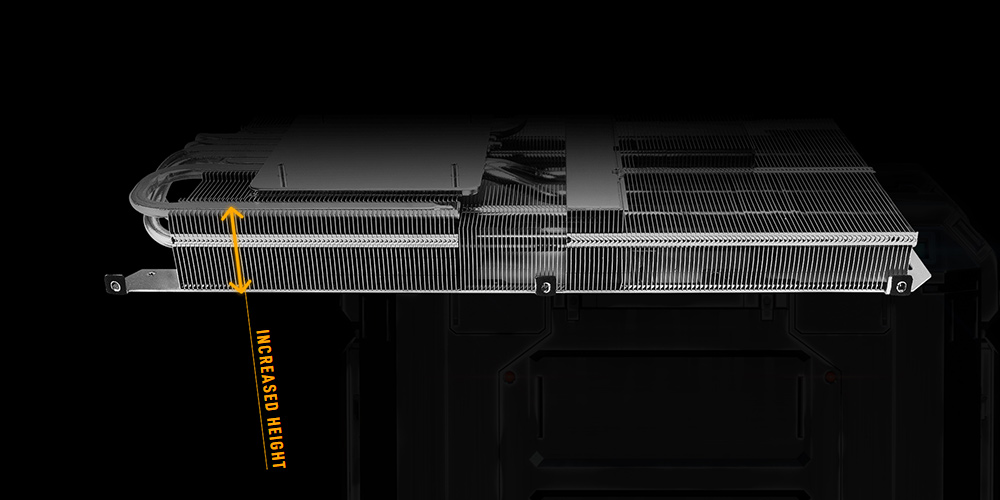

2.9-slot Design

The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card’s large, 2.9-slot footprint.

TUF COMPONENTS

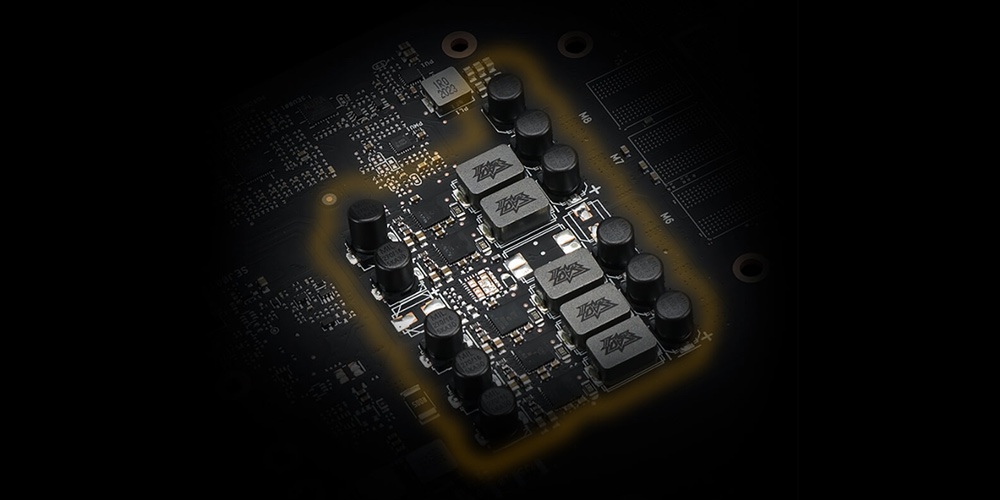

Robust military-grade capacitors were selected for the card’s power design. They and other components are soldered to the PCB using our Auto-Extreme automated manufacturing process. Precise joints and the elimination of human error ensures each graphics card meets our rigorous specifications. To ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.

*For reference only

Metal Coat

A machined all-aluminum shroud creates a robust outer shell and a no-nonsense industrial design and grayscale colorway fits into any build with ease.

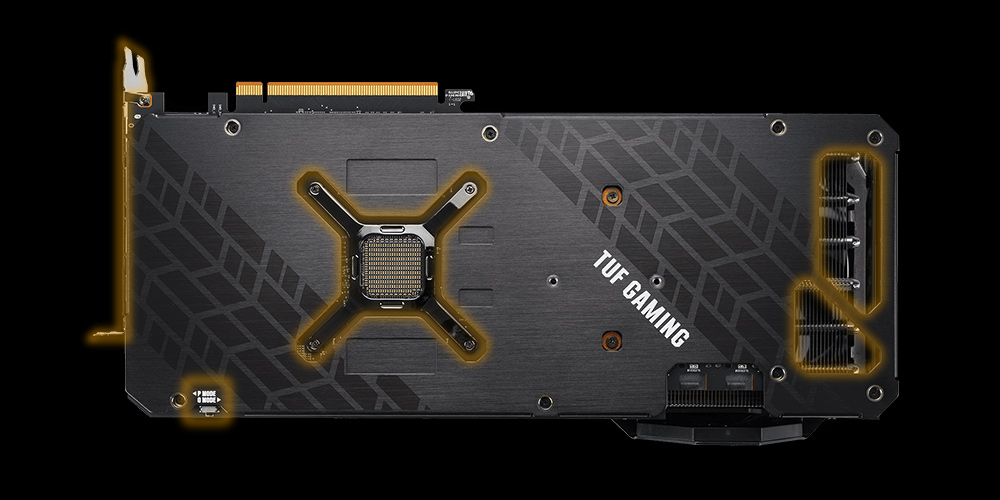

Armored Underside

The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. A GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual Bios switch allows customization of the card’s default performance profile without software.

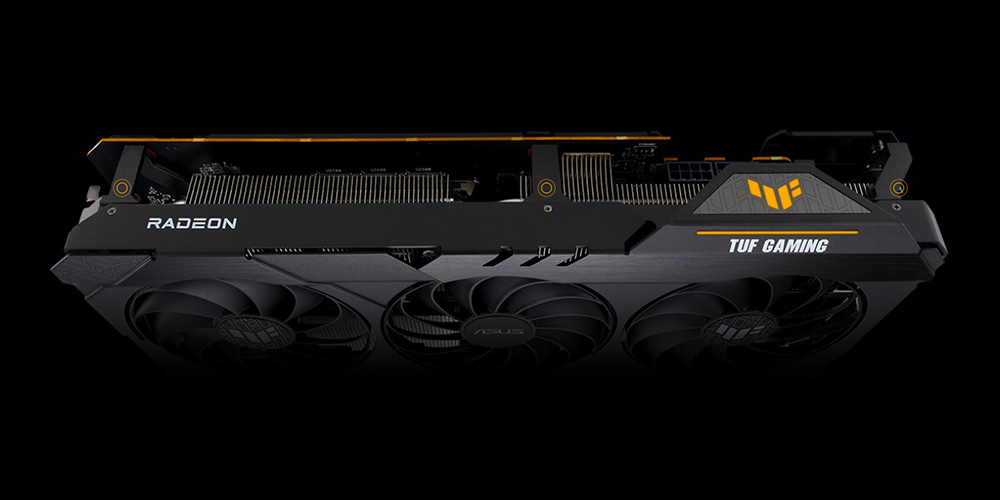

Functional Front

The front-side RGB element can be customized to display a range of aesthetic and functional effects, and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the Radeon RX 6950 XT, two 8-pin power connectors are present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly. Structural pillars of a built-in reinforced metal frame are also visible here and add a literal layer of durability.

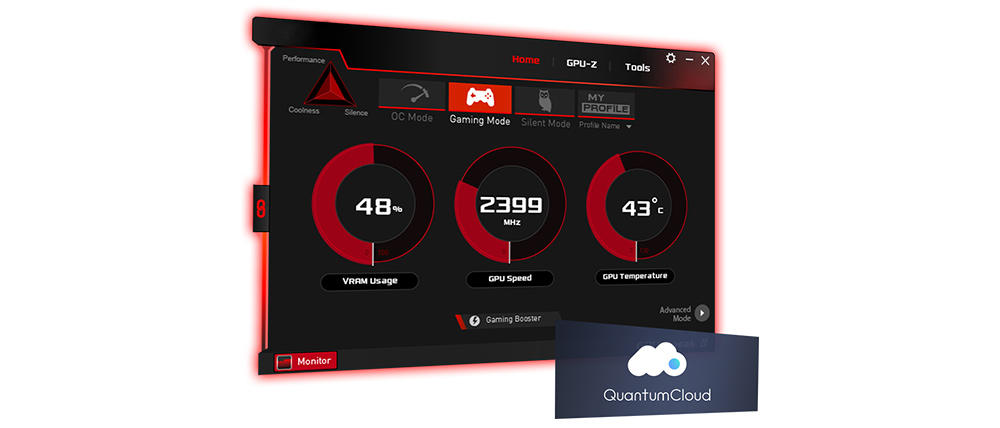

Software Suite

Harness the hardware

Hardware and software come together to let you fully customize your experience and get the most out of your graphics card. GPU Tweak II allows for hardware tweaking and monitoring, and QuantumCloud utilizes your spare GPU computing power to generate passive income.?

Free 1 Month of Adobe Creative Cloud

Get complimentary membership with the purchase of selected ASUS products.*

*Terms and conditions apply. For more details, please read the full terms and published on the event page.

  • Master Your Game With Legendary Performance

    The new AMD Radeon™ RX 6950 XT, RX 6750 XT, and RX 6650 XT graphics cards are optimized for DirectStorage to help reduce load times in games and bring expansive worlds to life in amazing detail. The Radeon™ RX 6000 Series graphics cards take full advantage of the latest innovations in upscaling technologies such as AMD FidelityFX™ Super Resolution2 or the new Radeon™ Super Resolution1. Whether it is AAA gaming or eSports, experience all your games without compromise.

  • Supercharged Performance

    The Radeon™ RX 6000 Series graphics cards can take on the most demanding titles at maximum settings with all the latest features enabled. With up to 80 powerful graphics compute units, coupled with up to 16GB of high-speed GDDR6 memory, and up to 128MB of low-latency AMD Infinity Cache™, these cards redefine enthusiast level performance.

  • Vivid Visuals

    Experience a new level of immersion with the Radeon™ RX 6000 Series graphics cards with support for the latest software innovations such as DirectX® 12 Ultimate and the latest AMD FidelityFX™ technology feature set, enabling realistic lighting, shadows, and reflections in extreme detail. AMD FidelityFX™ technology features are optimized for the AMD RDNA™ 2 architecture to power the next generation of gaming visuals at high framerates, providing a mesmerizing gaming experience.

Main Features

  • Factory Mode: Up to 2324 MHz (Boost Clock)/up to 2116 MHz (Game Clock)
  • Axial-tech fan design has been enhanced with more fan blades and a new rotation scheme.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
  • An all-aluminum shroud, reinforced frame, and metal backplate enhance durability.
  • MaxContact heat spreader features a super flat surface for improved thermal transfer.
  • A vented backplate prevents hot air from recirculating through the cooling array.
  • GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Specifications

Storage

Memory Size 16384 MB

GPU

Chipset Manufacturer AMD
Chipset Model Name Radeon RX
Chipset Model Number 6950 XT
Chipset Additional Information TUF Gaming OC
Chip Clock Up to 2324 MHz

Memory

Memory Clock 18 Gbps
Memory Type GDDR6
Memory Width 256 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x16
HDMI Port 1 x HDMI 2.1
DisplayPort 3 x DisplayPort 1.4a

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot
Recommended 1000W or greater PSU with 2 x 8-pin PCIe connectors

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320 pixels

Physical

Form Factor Graphics Card
In The Box Graphics Card
TUF Certificate of Reliability
Collection Card
Speedsetup Manual
ASUS Ruler
Width 57.8 mm (Triple Slot)
Depth 320 mm
Height 140.2 mm
Weight 1.718 kg

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 4.0 x16
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan
Low Profile No
AMD Radeon RX 6950 XT
PCI-E Pin Type 8-Pin + 8-Pin
FreeSync Yes
Cooling Technology Dynamic Fan
VR Ready AMD
GPU Length 320 mm
Card Width 3
Power Requirement (auto) 335 W
GPU Power (TDP) 335 W
Graphics card count 1

Graphics

Graphics Chipset Radeon RX 6950 XT

Item Details

Manufacturer ASUS
Manufacturer Code 90YV0HY0-M0NM00
Alternative Part Number TUF-RX6950XT-O16G-GAMING
EAN 4711081767336
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90YV0HY0-M0NM00
