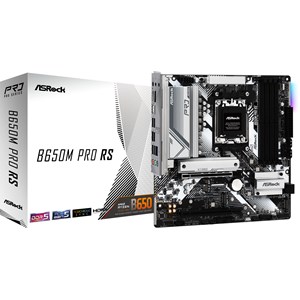

ASRock B650M Pro RS mATX Motherboard for AMD AM5 CPUs

ASRock B650M Pro RS mATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3643X

Discontinued

ASRock B650M Pro RS mATX Motherboard for AMD AM5 CPUs

90-MXBLP0-A0UAYZ

Key Features:

  • Form Factor: mATX
  • Socket: AM5
  • Memory: DDR5 (Max: 192GB)
  • Storage: 3 x M.2, 4 x SATA
  • USB: 8 port(s)

A Grade Item - 1 Year warranty

ASRock B650M Pro RS mATX Motherboard for AMD AM5 CPUs

90-MXBLP0-A0UAYZ

CCL Code: MBD3643X
  • Form Factor: mATX
  • Socket: AM5
  • Memory: DDR5 (Max: 192GB)
  • Storage: 3 x M.2, 4 x SATA
  • USB: 8 port(s)

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

A Grade Item

Please note that this is an A Grade open box item. It may have been returned to us by another customer who purchased it in error.

A Grade items are new and unused. The box may have been unsealed and opened. All A Grade items are complete, working and have been fully tested.

This item is supplied with a 1 Year warranty.

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

Main Features

  • Supports AMD Socket AM5 Ryzen 8000 and 7000 Series Processors
  • 8+2+1 Power Phase, Dr.MOS
  • Supports DDR5 7200+ MHz (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen4 x2)
  • 1 USB 3.2 Gen2 Type A+C (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
  • Dragon 2.5G LAN
Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors Ryzen 8000 and 7000 Series Processors
64-bit Support Yes
Socket AM5

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.1
1 x USB 3.1
2 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU/Water Pump fan header
3 x Chassis/Water Pump fan headers
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen5)
2 x M.2 slots, Key M, Type 2260/2280 (PCIe Gen4)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header

Memory

Memory Bus Speed Up to 7200 MHz
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD B650
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 1 Year Years

Sound

Integrated Sound Realtek ALC897

Network

Integrated Network Dragon RTL8125BG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard
In The Box Motherboard
User Manual
2 x SATA Data Cables
4 x Screws for M.2 Sockets
Standoff for M.2 Socket
Width 244 mm
Length 244 mm

Key Features

Wireless Network No
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Main Colour White
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B650
Thunderbolt No
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASRock RGB LED
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Max Memory Speed Supported (Non-overclocked) 5200 MT/s
Max Memory Speed Supported (overclocked) 7200 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBLP0-A0UAYZ
EAN 4710483943096
Condition A Grade
Warranty

Warranty Information

Warranty 1 Year Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBLP0-A0UAYZ
Graded Items
New
ASRock B650M Pro RS Motherboard
New
No additional information.
