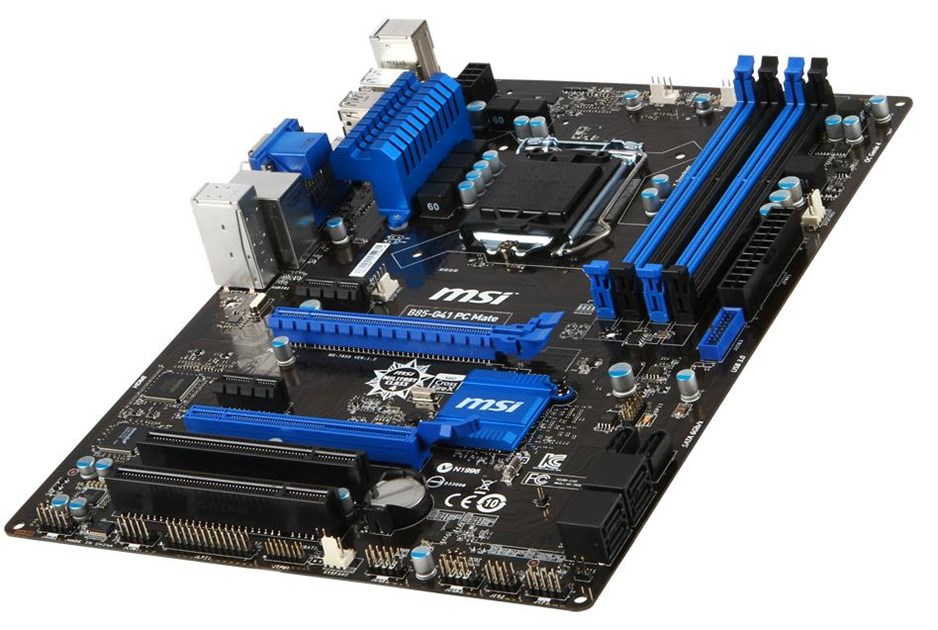

MSI B85-G41 PC Mate Motherboard LGA1150 Intel B85

DDR3 DVI HDMI VGA USB 3.0 Gigabit LAN ATX

  • USB 3.0 Support Yes

  • DVI Connection Yes

  • VGA Connection Yes

  • HDMI Connection Yes

CCL Code: MBD0857
Mnfr Code:

B85-G41-PCMate

£50.40 inc VAT

Quantity

MSI's new Military Class 4 components support you while you are questing, racing, battling and shooting your way to the top. MSI's Military Class 4 components deliver record-breaking stability when you need to keep cool in the heat of battle. The new standard in stability built on a proven technology of high quality components. The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit. OC Genie 4 supercharges your speed experience! When used, OC Genie 4 accelerates your entire system and puts it into overdrive! Tuned by the professional overclockers, OC Genie 4 hands you record-breaking performance on a silver plate. The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only reacting faster and running smoother, it also has better mouse support. This is all comes with many cool features, such as Hardware Monitor, Board Explorer, and OC Profile Preview. AMD CrossFireX is the ultimate multi-GPU performance gaming platform. Enabling game-dominatig power, AMD CrossFireX technology enables two or more discrete graphics processors to work together to improve graphics performance. AMD CrossFireX technology allows you to expand your system's graphics capabilities.


CPU
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Socket LGA 1150
Motherboard
Chipset Manufacturer Intel
Northbridge B85
SATA Supported Yes

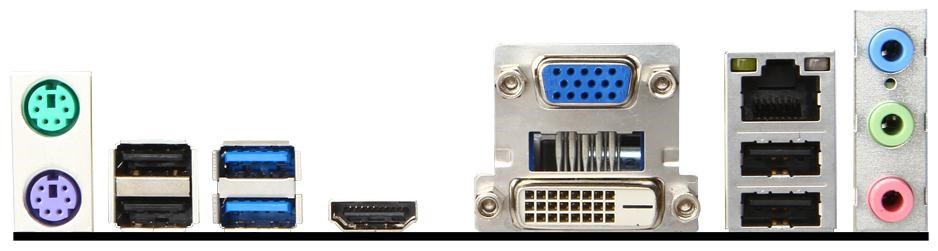

Rear Panel I/O Ports
Keyboard/Mouse Combo Port 1 x PS/2 Keyboard + Mouse
HDMI Port 1 x HDMI
RJ-45 Ports 1 x RJ-45
VGA Port 1 x VGA
Digital Port 1 x DVI-D
USB Ports 4 x USB 2.0 • 2 x USB 3.0
Audio Line Out Ports 1 x 3 in 1 audio jack
Internal I/O Connectors
Front Panel Connectors 1 x Front Audio Header • 1 x Front Panel Header
SATA Connectors 2 x SATA II • 4 x SATA III
USB Connectors 4 x USB 2.0 • 1 x USB 3.0
Parallel Connectors 1 x Parallel Port Connector
Serial Connectors 1 x Serial Port Connector
Chassis Intrusion Connector 1 x Chassis Intrusion Connector
TPM Header 1 x TPM Header
Power Connector Port 1 x 24-pin ATX • 1 x 8-pin ATX 12V
Expansion
Number of PCI Slots 2 slot(s)
PCI Slot Type PCI
Number of PCI Express Slots 4 slot(s)
PCI Express 3.0 Slot Type 1 x PCI Express 3.0 x16 slot
PCI Express 2.0 Slot Type 1 x PCI Express 2.0 x16 • 2 x PCI Express 2.0 x1
Memory
Maximum RAM 64 GB
Memory Bus Speed 1066/1333/1600 MHz
Memory Slot 4 x DDR3 DIMM Slots
Sound
Integrated Sound Chipset integrated by Realtek ALC887
Network
Integrated Network Realtek 8111G
Network Speeds Supported 10/100/1000 Mbps
System
BIOS The mainboard BIOS provides Plug & Play BIOS which detects the peripheral devices and expansion cards of the board automatically. • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
Physical
Form Factor MicroATX
Width 30.5 cm
Length 22 cm
Item Details
Manufacturer MSI
Part Number B85-G41-PCMate
UPC 816909107173
Condition New

Do you have you a question about the MSI B85-G41 PC Mate Motherboard LGA1150 Intel B85?

Q: how many fan headers are on this board ?
Answer by Website User on 7th October 2014
This motherboard has two CPU fan headers and three for system fans. -Danlevan
0 customers found this answer helpful.
Q: What accessories come with this product ?
Answer by Website User on 7th October 2014
It will come with I/O shield, two SATA cables, manual and driver disc. -Danlevan
0 customers found this answer helpful.
Q: Does this motherboard come with a network adapter? Will I need to purchase a USB adapter to connect to wireless network?
Answer by Website User on 21st July 2014
This motherboard has a built in Ethernet adapter but you would need either a USB or internal adapter if you want to connect to wireless. -Danlevan
0 customers found this answer helpful.
Q: Is this compatible with the intel i5-4430 and RAM DDR3 1866MHz?
Answer by Dan@CCL on 8th July 2014
The processor will be fine but the motherboard lists as supporting memory up to 1600MHz so while it should downclock the memory to run at the correct speed I'd recommend putting 1600MHz memory in to ensure compatibility. -Danlevan
0 customers found this answer helpful.
